SPECIFICATIONS:
Case type
Tower Chassis
Color
Black
Dimensions
(D) 522mm x (W) 304mm x (H) 531.9mm
Material
Steel
4.0mm Tempered Glass
Aluminum
Motherboard support
E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX
Expansion slot
8
Storage
Behind MB Tray: 3 x 2.5” SSD
Hard Drive Cage: 4 x 3.5” HDD / 2.5” SSD
GPU length clearance
460mm (Max.)
CPU cooler height clearance
167mm (Max.)
PSU
ATX (Under 220mm)
Fan support
Top: 3 x 120mm / 3 x 140mm
Side: 3 x 120mm / 3 x 140mm
Bottom: 3 x 120mm / 3 x 140mm
Rear: Up to 2x 120mm
Radiator support
Top: 360 / 420 / 240 / 280mm
Side: 360 / 420 / 240 / 280mm
Bottom: 360 / 420 / 240 / 280mm
I/O ports
1 x Power Button
1 x Reset Button
4 x USB 3.0
1 x USB Type C
1 x Audio
1 x LED Color Button
1 x LED Mode Button
Dust filters
1 x Bottom 1 x Top
2 x Side
Package contents

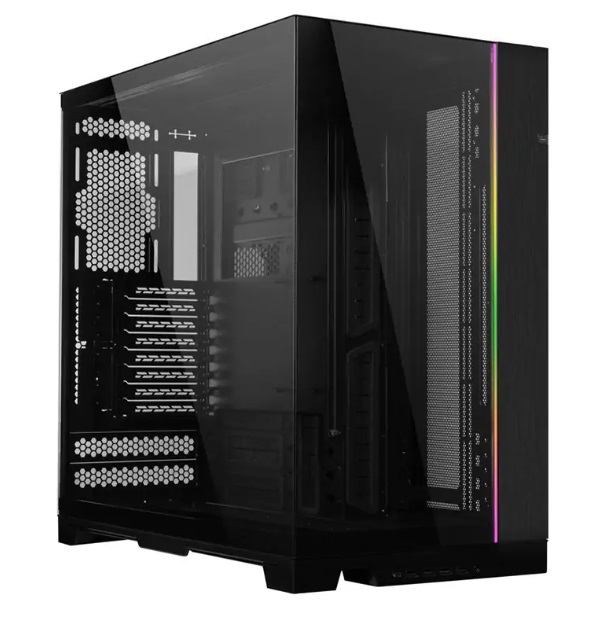

O11 Dynamic EVO XL Case
2 x Fan bracket cover
1 x Cable buckle
25 x Screws for motherboard/2.5" SSD mounting
4 x Screws for PSU mounting
12 x Anti-vibration rings for 2.5" SSD / 3.5" HDD mount
12 x Screws for 2.5" SSD mount
8 x Screws Install 15 mm thick fan
2 x Screws (spare parts) Fixed front/side glass
3 x Stand-off bolt (spare parts) for M/B mount
1 x Tool for stand-off bolt
4 x Screws for fan mounting
1 x Name plate
2 x Plastic buckle (spare parts)
4 x Female clips (spare parts) for side panel
16 x Screws for 3.5" HDD mount
7 x Cable ties for cable management
Extension cable for HD audio cable at reversed mode
|
$345
inc GST
|
